MG996 360° Servo Motor

MG996 360° Servo Motor

Rs. 450.00
Rs. 580.00 Rs. 450.00
Sale Sold out
Tax included. Shipping calculated at checkout.

The MG996 360° Servo Motor offers continuous rotation capabilities, making it ideal for drive mechanisms in robotics, wheeled robots, and advanced motion applications. With a powerful motor, stable control system, and durable construction, this servo ensures consistent torque and smooth operation over its full 360° rotational range.

Specifications for MG996 360° Servo Motor:

  • Model: MG996
  • Weight: 55 g
  • Operating Voltage: 4.8 V – 7.2 V
  • Running Current: 500 mA – 900 mA (at 6 V)
  • Stall Current: 2.5 A (at 6 V)
  • Stall Torque: 9.8 kgf·cm (4.8 V), 11 kgf·cm (6 V)
  • Operating Speed: 0.17 sec/60° (4.8 V), 0.14 sec/60° (6 V)
  • Rotational Range: Continuous 360° (variable speed based on PWM signal)
  • Dead Band Width: 5 μs
  • Wire Length: 30 cm
  • Connector: 3-pin ‘S’ type female header
  • Direction: CCW/Variable based on input

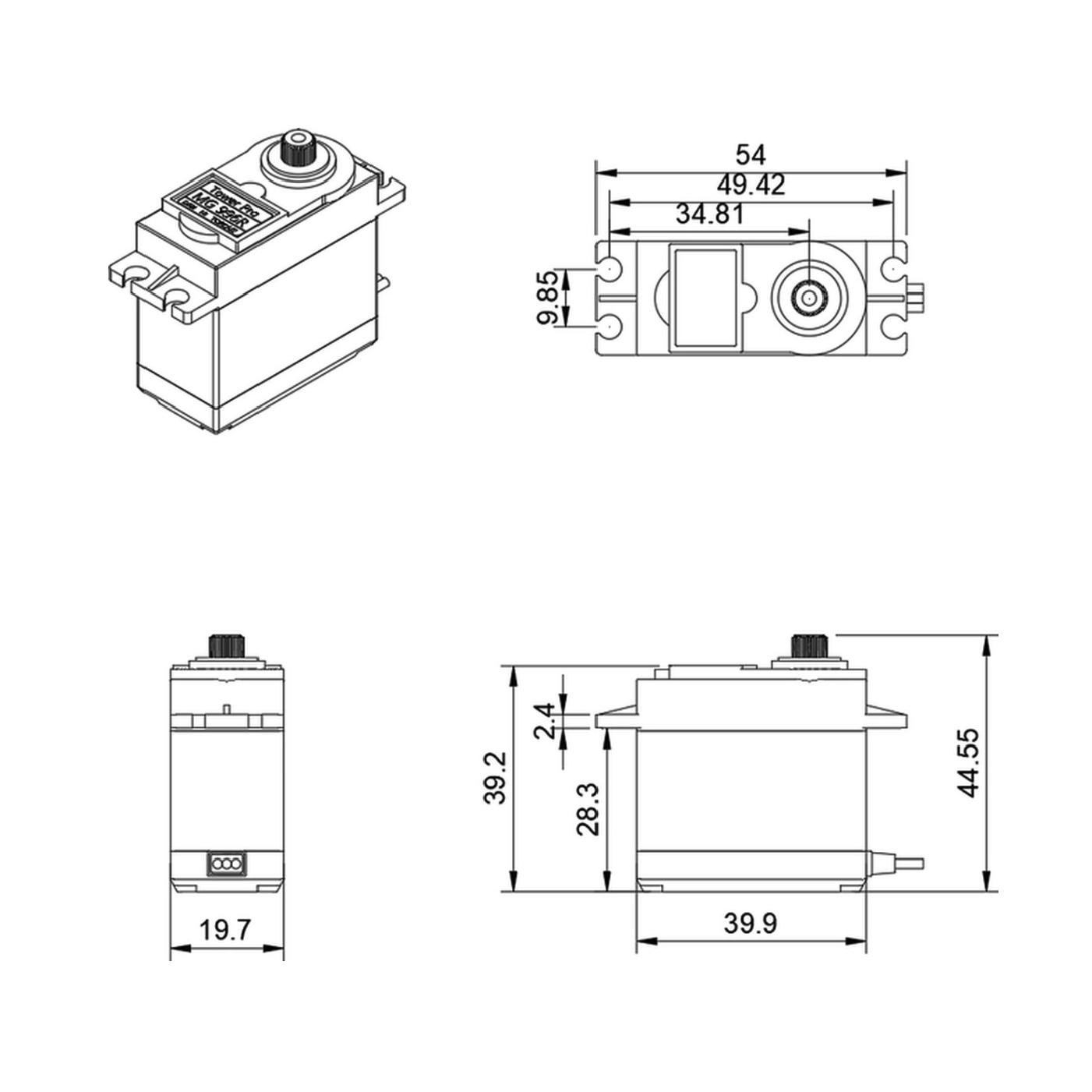

  • Dimension: 40.7 x 19.7 x 42.9 mm
  • Control System: Analog
  • Temperature Range: 0°C – 55°C
  • Pulse Requirement: 900 μs – 2100 μs

Key Features:

  • Continuous 360° rotation for versatile motion tasks.
  • High stall torque ensures excellent performance under load.
  • Durable metal gear design for long-lasting reliability.
  • Smooth and stable control response.
  • Ideal for robotic wheel drives and automated systems.

Usage Guide: (We recommend you to use this with our JR Breakout boards- arduino/ESP32)

  1. Power Requirements: Use a 4.8V–7.2V power source.
  2. Connection: Connect the 3-pin female plug to your controller, ensuring proper alignment (signal, power, ground).
  3. PWM Control: Adjust the PWM signal to control the rotation speed and direction.
  4. Mounting: Use the included screws and horns to securely attach the servo.

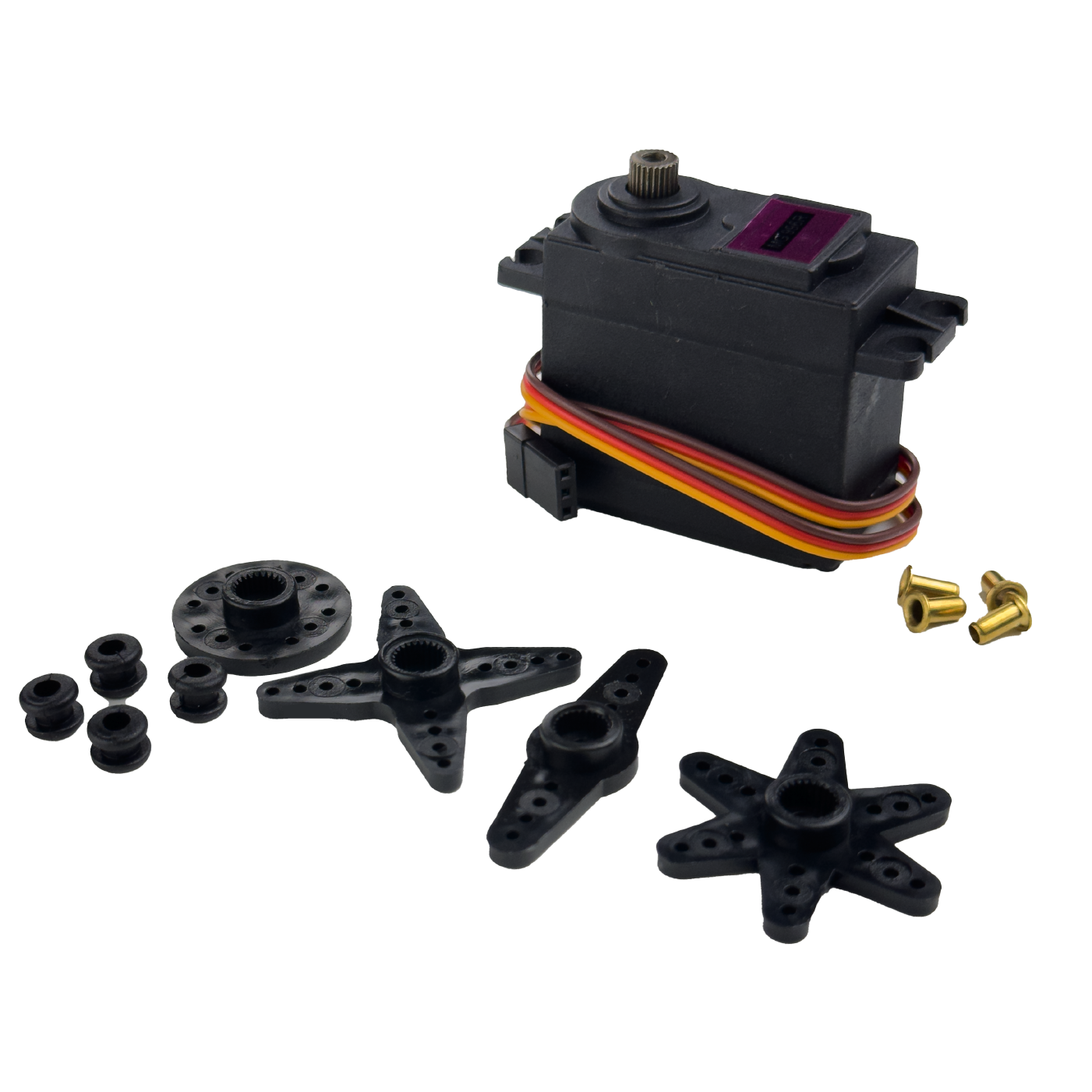

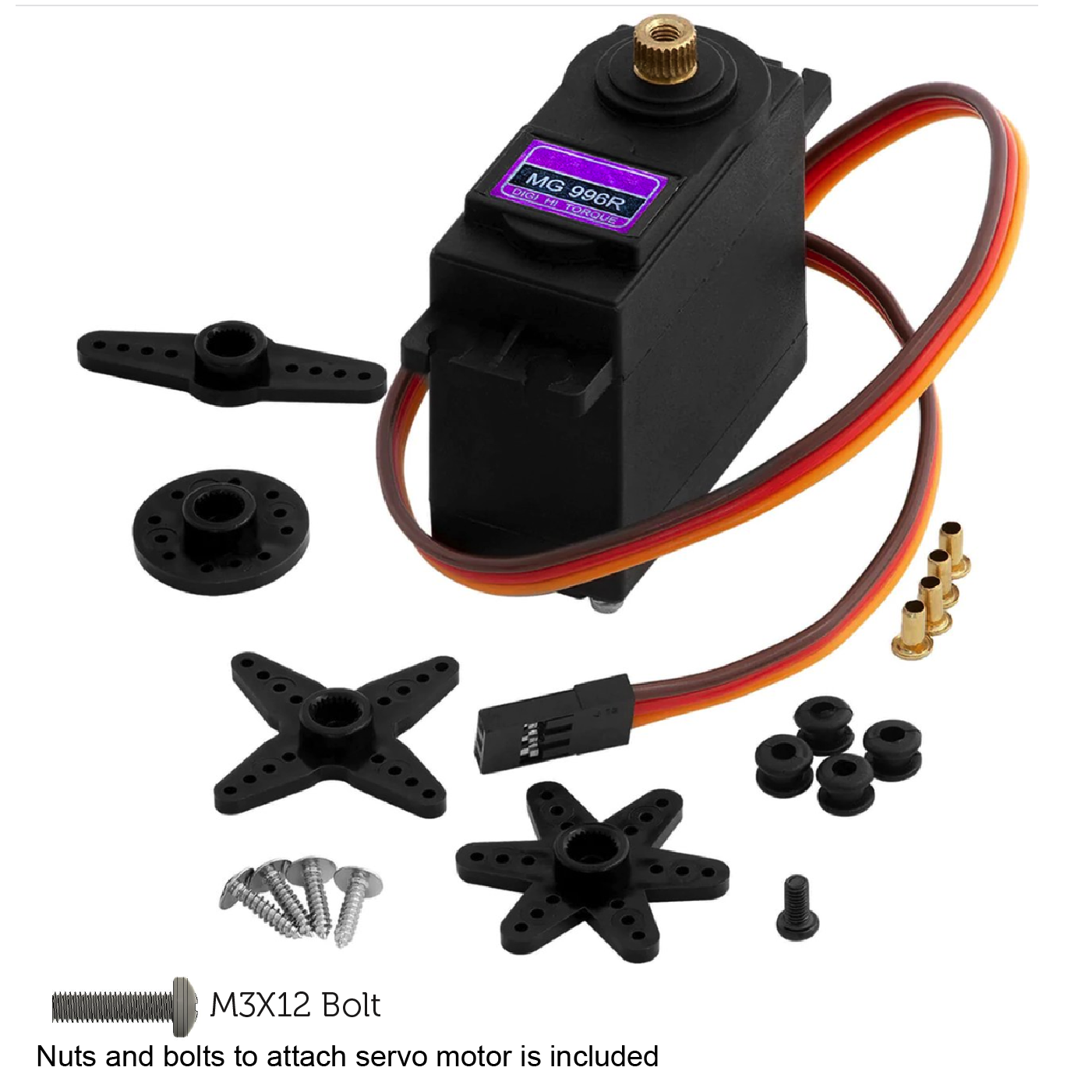

Package Includes:

  • 1 x MG996 Servo Motor
  • 1 x Set of Horns (Straight and Star)
  • 1 x Set of Screws (M3X12 Bolts)
