ESP32 Breakout Board – Simplified Connectivity for Servo Motors, Sensors, and Power Management
ESP32 Breakout Board – Simplified Connectivity for Servo Motors, Sensors, and Power Management
Couldn't load pickup availability

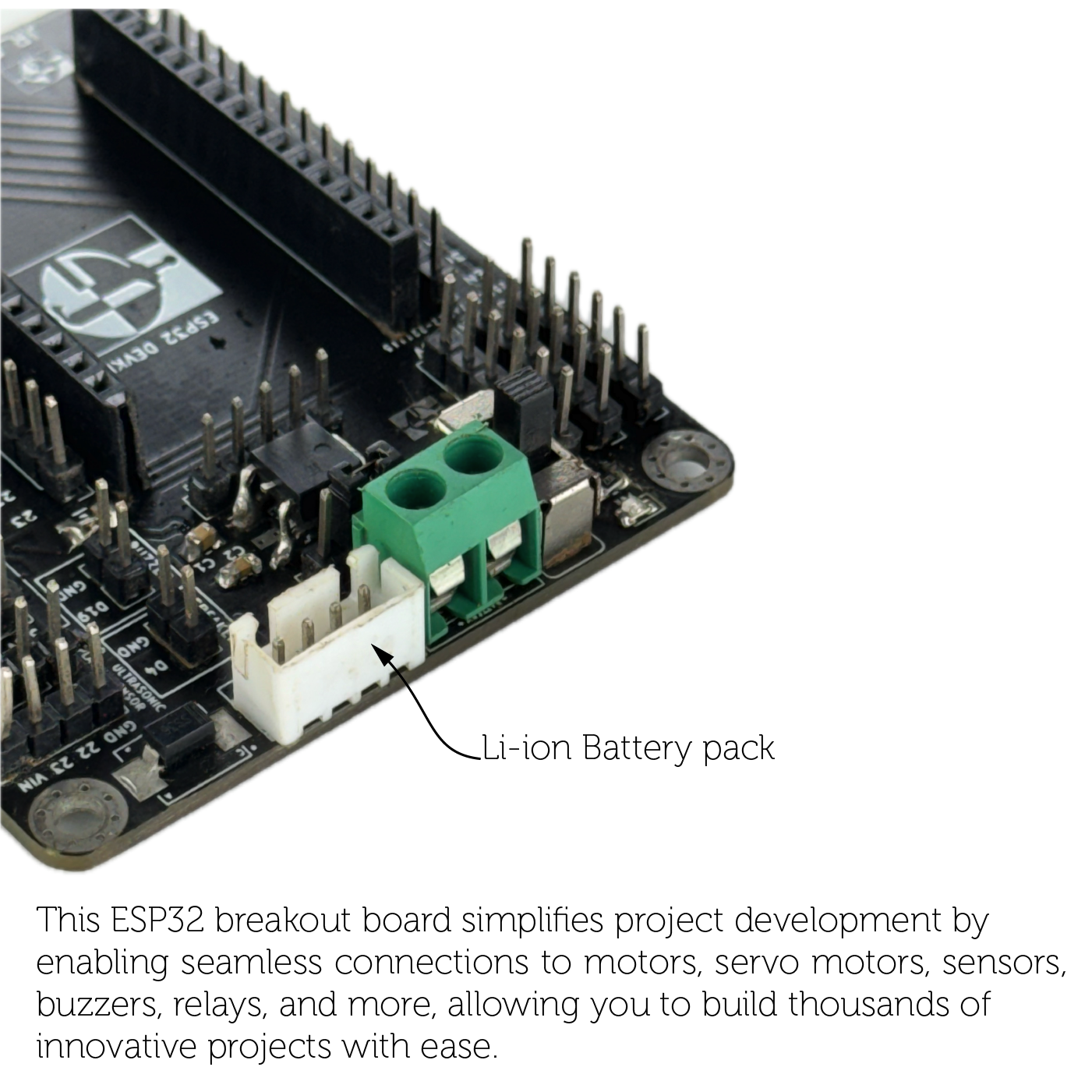

The ESP32 Breakout Board is designed to streamline your IoT and robotics projects by providing a seamless interface for connecting servo motors, sensors, and power sources. This versatile board manages power distribution effectively, converting an 8V lithium-ion battery (e.g., JR Lithium-ion battery) to meet the 3.3V requirement for the ESP32 microcontroller and 5V for servo motors or sensors. With its robust design and easy connections, it ensures stable and reliable performance for every project, making it ideal for both hobbyists and professionals.
Specifications
- Input Voltage: 8V (supports JR Lithium-ion or similar batteries)
-
Output Voltage:
- 3.3V for ESP32 board
- 5V for servo motors, sensors, and peripherals
- Compatibility: Supports ESP32-based microcontrollers and modules
- Connectors: Multiple pin headers for servo motors, sensors, and peripherals
- Battery Support: Lithium-ion batteries, up to 8V input
- Dimensions: Compact and lightweight
Usage Guide
-
Power Input:
- Connect an 8V JR Lithium-ion battery (or similar battery) to the power input terminal on the breakout board.
- The breakout board will regulate power, providing 3.3V for the ESP32 and 5V for connected peripherals.
-
Connect ESP32:
- Plug your ESP32 microcontroller/module into the dedicated slot or headers.
-
Attach Servo Motors and Sensors:
- Use the designated 5V power pins and signal pins to connect servo motors or sensors.
- Ensure the servo motors are aligned properly with the ground, power, and signal pins.
-
Power Management:
- The breakout board ensures stable power distribution to prevent overloading or overheating.
-
Project Setup:
- Program your ESP32 for your robotics, IoT, or automation project. The breakout board will provide uninterrupted power and connectivity.
Key Features
-
Integrated Power Management:
- Regulates input voltage (8V) to provide 3.3V for ESP32 and 5V for servo motors or sensors.
-
Simplified Connectivity:
- Multiple pin headers for connecting servo motors, sensors, and other peripherals easily.
-
Stable Performance:
- Prevents voltage fluctuations and ensures reliable power delivery to both the ESP32 and connected devices.
-
Compact and Durable:
- Lightweight and robust design for portable and long-lasting use in projects.
-
Versatile Applications:
- Ideal for robotics, IoT systems, sensor-based automation, and servo motor control.
